CONCRETE BATCHING PLANT
CONMAC 45:
Technical Specifications: |
CONMAC 45 |
|---|---|
| Plant Capacity m3/hour | 45 |
| Mixer Capacity m3 | 0.75 |
| Total Motor Power kW | 80 |
| Voltage/Frequency Hz | 380V / 50 |
Cement Weighing Hopper |
|
|---|---|
| Weighing Capacity kg | 400 |
| Load Cell kg | 3×500 |
| Pneumatic Valve | 1pc |
| Drive | 1pc |
| Vibrator | 1 unit |
Water Weighing Hopper |
|
|---|---|
| Weighing Capacity kg | 300 |
| Load Cell kg | 3×500 |
| Pneumatic Valve | 1pc |
| Drive | 1pc |
Additive Weighing Hopper |
|
|---|---|
| Capacity kg | 25 |
| Load Cell kg | 50 |
| Pneumatic Valve | 1pc |
| Pump kW | 0.75 |

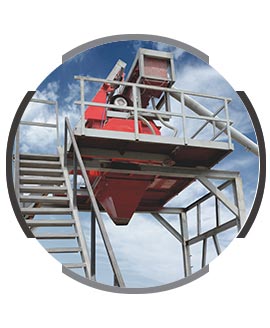

Model |
JS 750 |
|---|---|
| Capacity m3/h | 45 |
| Discharge Volume Ltr | 750 |
| Charge Volume Ltr | 1200 |
| Mixing Blade Speed r/min | 35.5 |
| Number of Mixing Blade | 8×2 |
| Mixer Motor Power kW | 30 |
| Hoist Electromotor Power kW | 7.5 |
| Water Pump Power kW | 1 |
| Lifting Speed of Hopper m/min | 18 |
| Overall Dimension (LxWxH) ft | 12×7.5×9 |
| Overall Weight kg | 6700 |

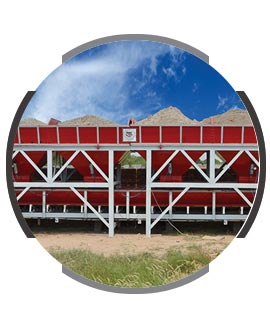

AGGREGATE BIN |
|
|---|---|
| Bin Volume m3 | 24 |
| Aggregate Comp./Discharge m3 | 4 comp 6 |
| Charge Volume Ltr | 800 |
| Air Preparation unit | 1 |
| Sand Vibrator unit | 4 |

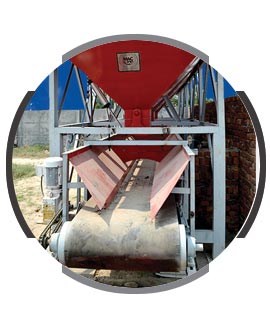

Weighing Belt Conveyor |
|
|---|---|
| Dimensions ft | 2×16.5 |
| Load Cells kg | 4 x 2000 |
| Rubber Belt ft | 79 |
| Drums (covered with 9mm rubber) | Drive drum |
| Weighing Hopper Vibrators unit | 1 |
| Motor – Gearbox kW | 10 |

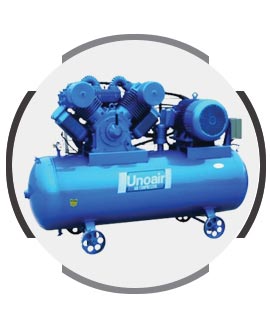

Air compressor & Pneumatic Equipment |
|
|---|---|
| Model: | UB40-160 |
| Motor | 4HP, 3kw |
| Cylinder | W3 |
| Air Delivery (16.8C.F.M) /min | 477L |
| Pressure | 145PSI 10Bar |
| Weight kg | 140 |
| Model: | UB40-160 |
| Motor | 4HP, 3kw |

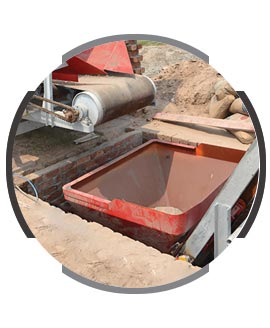

Skip Hoist and Bucket Feeding |
|
|---|---|
| Motor – Gearbox kW | 1 |
| Move Speed m/s | 1.1 |
| Lifting Speed of Hooper m/minr | 7.5 |
| Dry Filling Capacity m3 | 0.4 |
| Max. Loading Capacity tons | 18 |
Cement screw conveyor – wam |
|
|---|---|
| Type | Universal Input |
| Diameter mm | 273 |
| Motor Power kW | 11 |
| Conveyor Length ft | 40 |
| Weight kg | 680 |
