CONCRETE BATCHING PLANT

CONMAC 75:



Technical Specifications:

CONMAC 75

Plant Capacity m3/hour 70-75
Mixer Capacity m3 1.5
Total Motor Power kW 125-135
Voltage/Frequency Hz 380V / 50



Cement Weighing Hopper

Weighing Capacity kg 800
Load Cell kg 3×500
Pneumatic Valve 1pc
Drive 1pc
Vibrator 1 unit



Water Weighing Hopper

Weighing Capacity kg 600
Load Cell kg 3×500
Pneumatic Valve 1pc
Drive 1pc



Additive Weighing Hopper

Capacity kg 50
Load Cell kg 50
Pneumatic Valve 1pc
Pump kW 0.75

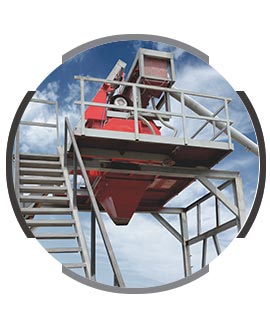

Model

JS 1500

Capacity m3/h 70-75
Discharge Volume Ltr 1500
Charge Volume Ltr 2200
Mixing Blade Speed r/min 35.5
Number of Mixing Blade 8×2
Mixer Motor Power kW 60
Hoist Electromotor Power kW 22
Water Pump Power kW 2
Lifting Speed of Hopper m/min 18
Overall Dimension (LxWxH) ft 32x12x36
Overall Weight kg 11410

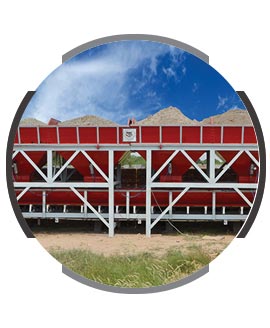

AGGREGATE BIN

Bin Volume m3 32
Aggregate Comp./Discharge m3 4 comp 8
Air Preparation unit 1
Sand Vibrator unit 4

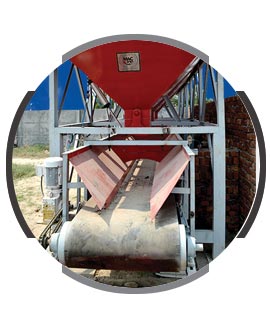

Weighing Belt Conveyor

Dimensions ft 2×16.5
Load Cells kg 4 x 4000
Rubber Belt ft 103
Drums (covered with 9mm rubber) Drive drum
Weighing Hopper Vibrators unit 1
Motor – Gearbox kW 15

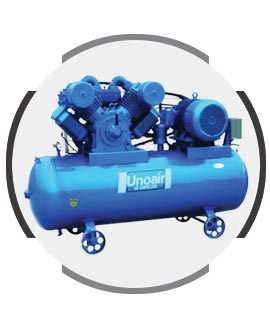

Air compressor & Pneumatic Equipment

Model: UB40-160
Motor 4HP, 3kw
Cylinder W3
Air Delivery (16.8C.F.M) /min 477L
Pressure 145PSI 10Bar
Weight kg 140
Model: UB40-160
Motor 4HP, 3kw

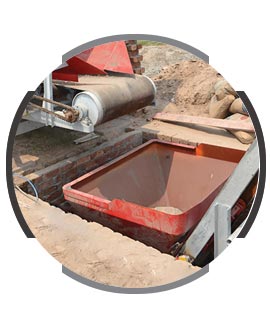

Skip Hoist and Bucket Feeding

Motor – Gearbox kW 1.25
Move Speed m/s 1.75
Lifting Speed of Hooper m/minr 22
Dry Filling Capacity m3 0.4
Max. Loading Capacity tons 18

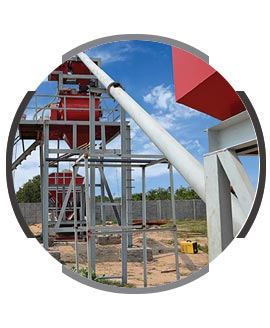

Cement screw conveyor – wam

Type Universal Input
Diameter mm 273
Motor Power kW 15
Conveyor Length ft 43
Weight kg 940
