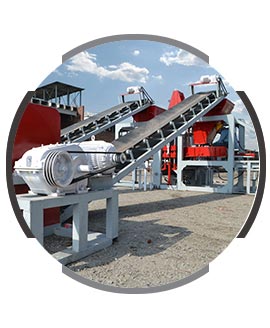

BLOCK MAKING MACHINE

PAVMAC 36:



General Technical Parameters:

Machine Operating System Hydraulic System
Machine Production Capacity 100-120 pallets/h
Pumping Capacity 24 gallons/min, 20 Hp
Hydraulic Oil Capacity 1250 liter
Lower Vibration Capacity 2 x 22 kW
Total Capacity Usage 165 kW
Minimum Product Height 50 mm
Maximum Product Height 300 mm
Number of Product on a pallet 36 interlocked paving ston
Wooden Pallet Dimensions 55×47 inch



Production Capacity

Size (mm)

Pieces/Pallet

Cycle Time sec

Shift Production 8h Monthly Production
Paver 100x200x60 36 15-20 25200 655200
I Section 198x163x60 25 15-20 17500 455000
Blocks 100x200x400 15 15-20 10500 273000
HollowBLock 100x200x400 15 15-20 10500 273000
Curb Stones 150x300x450 6 15-20 4200 109200
