BLOCK MAKING MACHINE

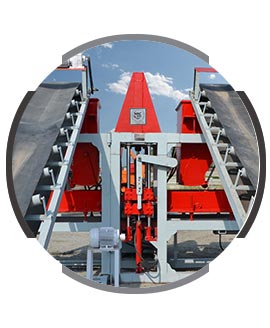

PAVMAC 24:
General Technical Parameters: |
|
|---|---|
| Machine Operating System | Hydraulic System |
| Machine Production Capacity | 100-120 pallets/h |
| Pumping Capacity | 19 gallons/min, 20 Hp |
| Hydraulic Oil Capacity | 700 liter |
| Lower Vibration Capacity | 2 x 11.1 kW |
| Total Capacity Usage | 140 kW |
| Minimum Product Height | 50 mm |
| Maximum Product Height | 300 mm |
| Number of Product on a pallet | 24 interlocked paving ston |
| Wooden Pallet Dimensions | 42×30 inch |
|
Production Capacity |
Size (mm) |
Pieces/Pallet |
Cycle Time sec |
Shift Production 8h | Monthly Production |
|---|---|---|---|---|---|
| Paver | 100x200x60 | 24 | 15-20 | 16800 | 436800 |
| I Section | 198x163x60 | 15 | 15-20 | 10500 | 273000 |
| Blocks | 100x200x400 | 12 | 15-20 | 8400 | 218400 |
| HollowBLock | 100x200x400 | 218400 | 15-20 | 8400 | 218400 |
| Curb Stones | 150x300x450 | 4 | 15-20 | 2800 | 2800 |
