BLOCK MAKING MACHINE

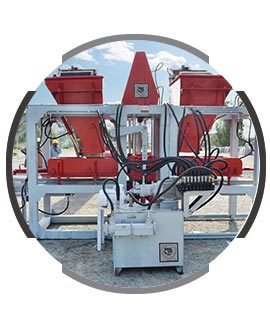

PAVMAC 18:
General Technical Parameters: |
|
|---|---|
| Machine Operating System | Hydraulic System |
| Machine Production Capacity | 100-120 pallets/h |
| Pumping Capacity | 14 gallons/min, 15 Hp |
| Hydraulic Oil Capacity | 500 liter |
| Lower Vibration Capacity | 2 x 11.1 kW |
| Total Capacity Usage | 65 kW |
| Minimum Product Height | 50 mm |
| Maximum Product Height | 300 mm |
| Number of Product on a pallet | 18 interlocked paving ston |
| Wooden Pallet Dimensions | 30×30 inch |
| Production Capacity | Size (mm) | Pieces/Pallet | Cycle Time sec | Shift Production 8h | Monthly Production |
|---|---|---|---|---|---|
| Paver | 100x200x60 | 18 | 15-20 | 12600 | 327600 |
| I Section | 198x163x60 | 12 | 15-20 | 8400 | 218400 |
| Blocks | 100x200x400 | 6 | 15-20 | 4200 | 109200 |
| HollowBLock | 100x200x400 | 6 | 15-20 | 4200 | 109200 |
| Curb Stones | 150x300x450 | 6 | 15-20 | 1400 | 36400 |
