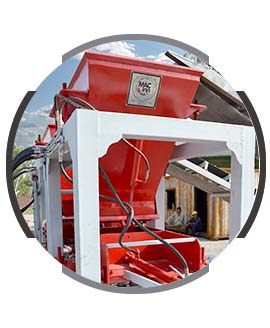

BLOCK MAKING MACHINE
PAVMAC 12:
General Technical Parameters: |
|
|---|---|
| Machine Operating System | Hydraulic System |
| Machine Production Capacity | 100-120 pallets/h |
| Pumping Capacity | 12 gallons/min, 15 Hp |
| Hydraulic Oil Capacity | 300 liter |
| Lower Vibration Capacity | 2 x 7.5 kW |
| Total Capacity Usage | 50 kW |
| Minimum Product Height | 50 mm |
| Maximum Product Height | 300 mm |
| Number of Product on a pallet | 12 interlocked paving ston |
| Wooden Pallet Dimensions | 30×24 inch |
| Production Capacity | Size (mm) | Pieces/Pallet | Cycle Time sec | Shift Production 8h | Monthly Production |
|---|---|---|---|---|---|
| Paver | 100x200x60 | 12 | 15-20 | 8400 | 218400 |
| I Section | 198x163x60 | 9 | 15-20 | 6300 | 163800 |
| Blocks | 100x200x400 | 5 | 15-20 | 3500 | 91000 |
| HollowBLock | 100x200x400 | 5 | 15-20 | 3500 | 91000 |
| Curb Stones | 150x300x450 | 2 | 15-20 | 1400 | 36400 |
ABOUT MACINN
MACinn is an engineering venture designed by professional Ph.D doctors and motivated engineers in Pakistan to meet the international standards of construction machinery designs.
